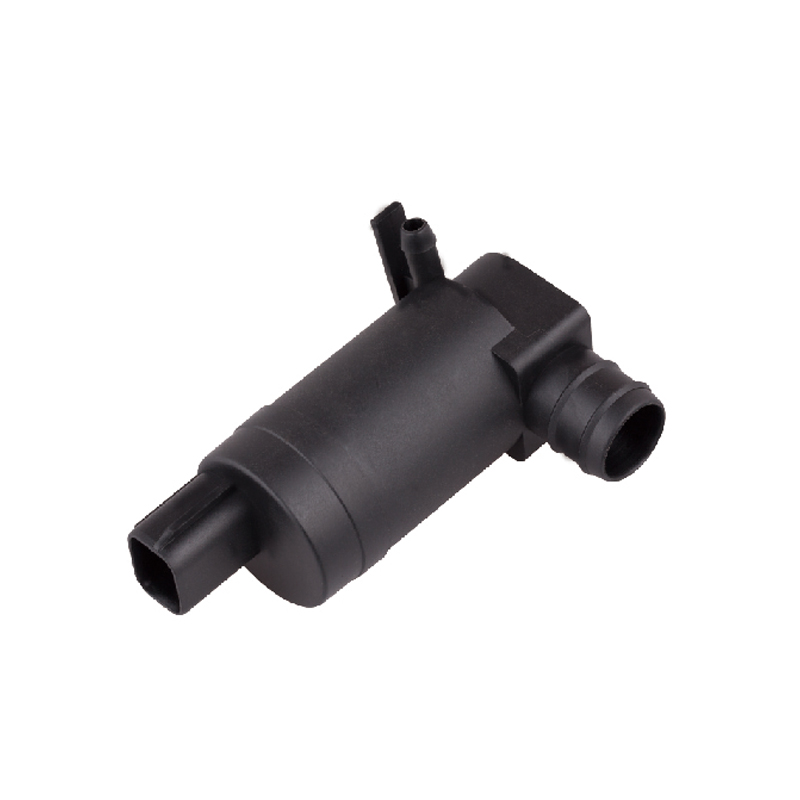

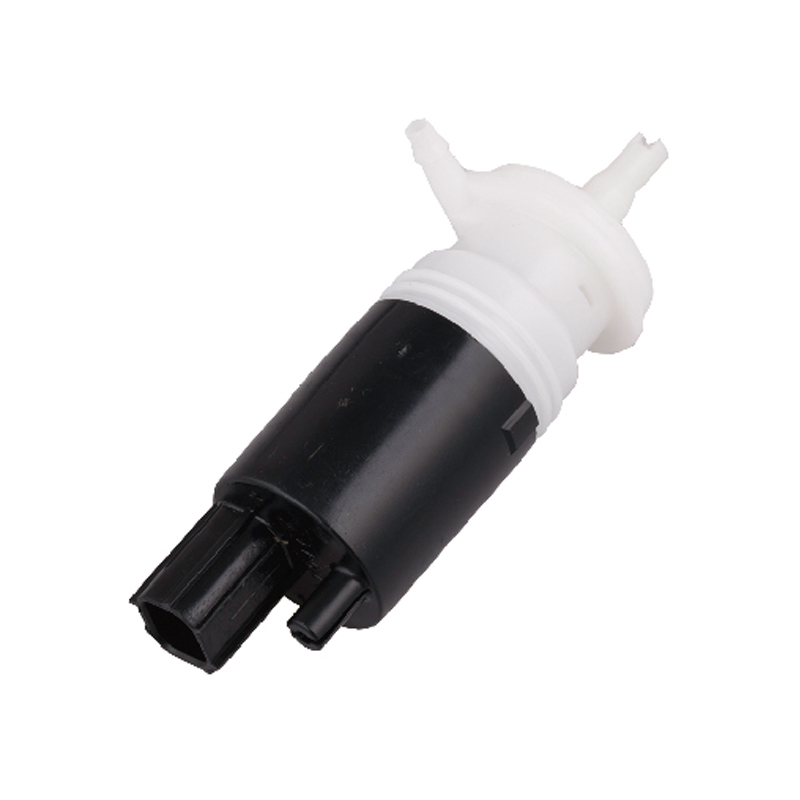

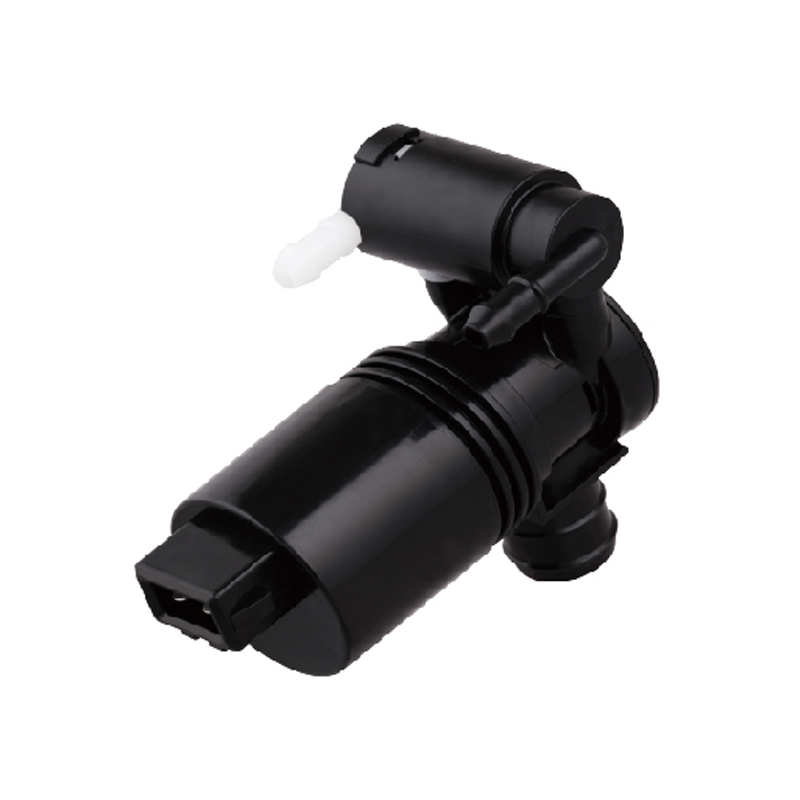

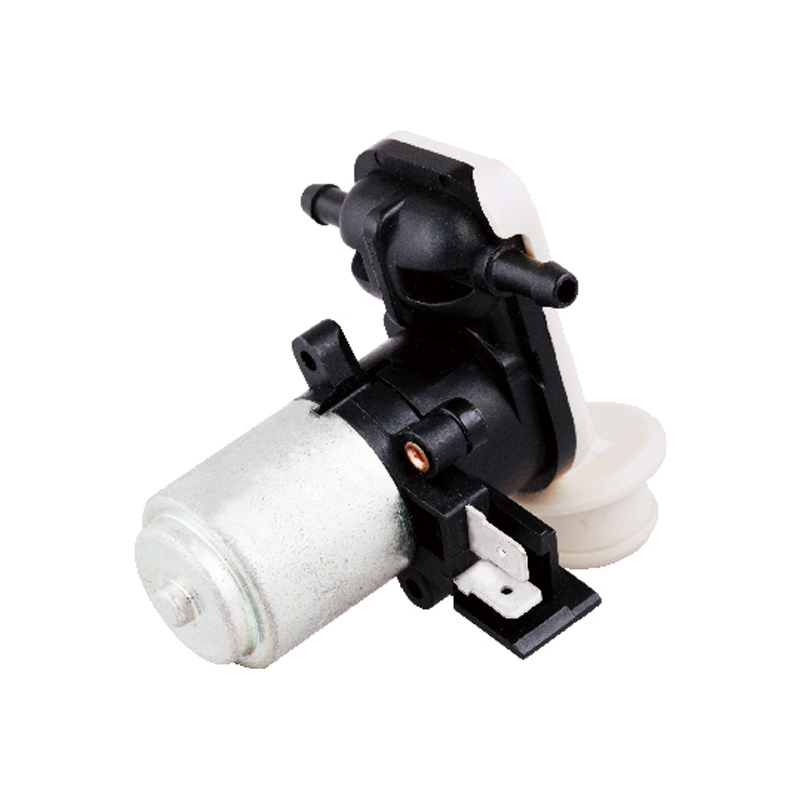

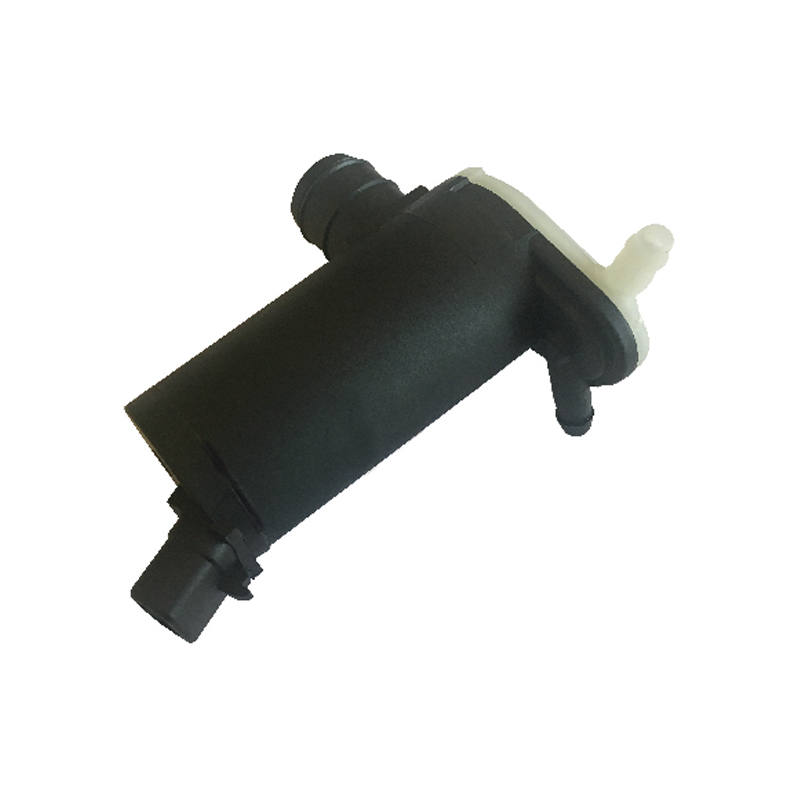

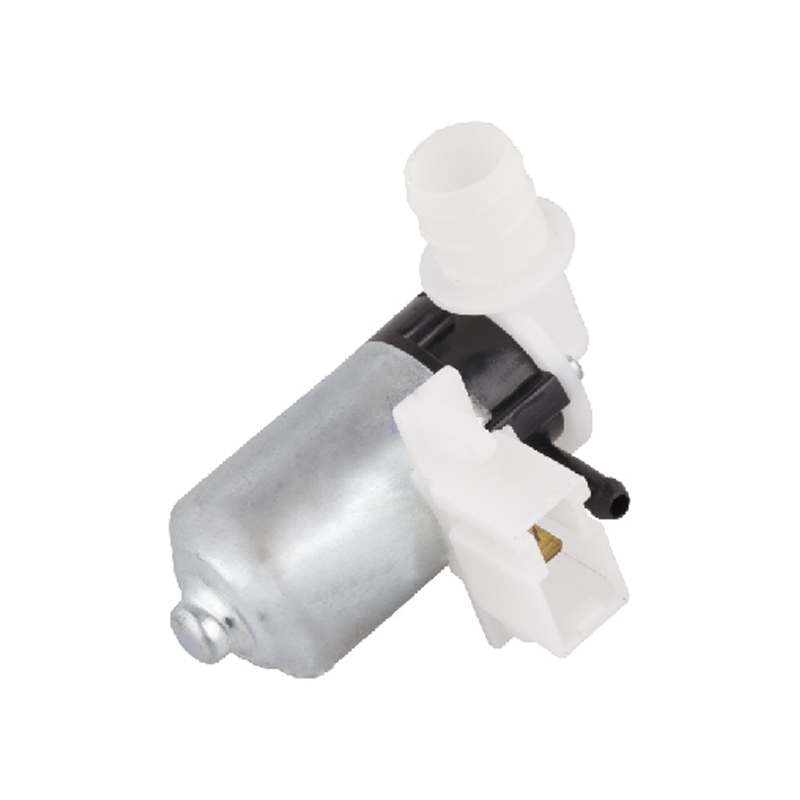

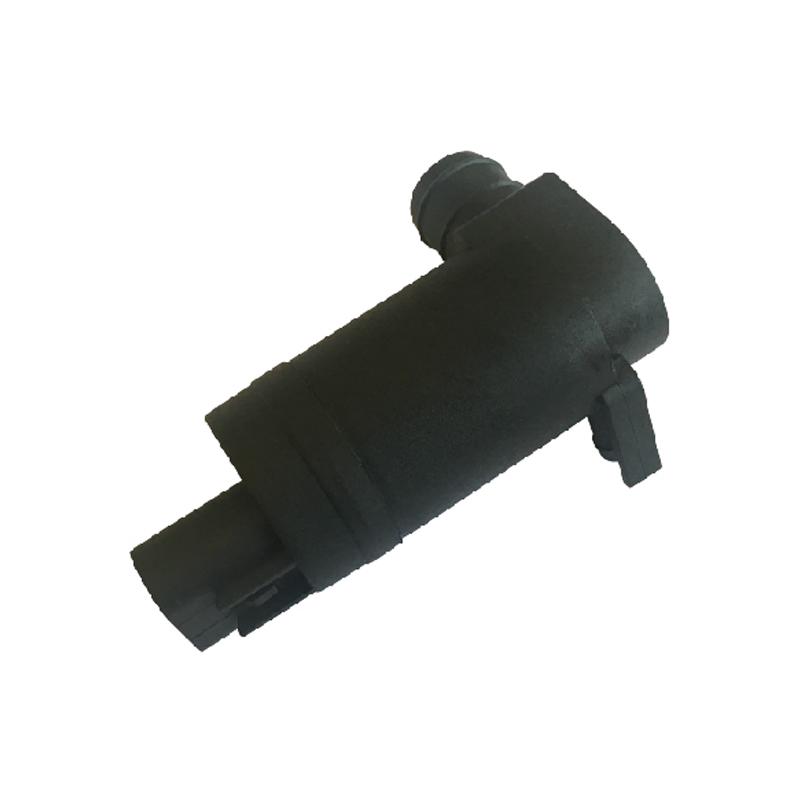

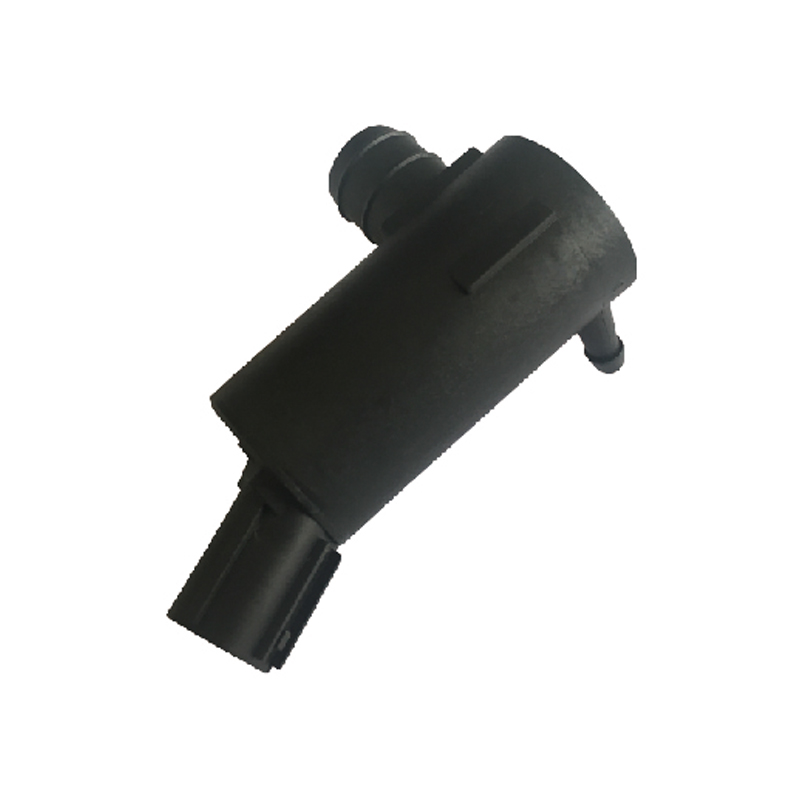

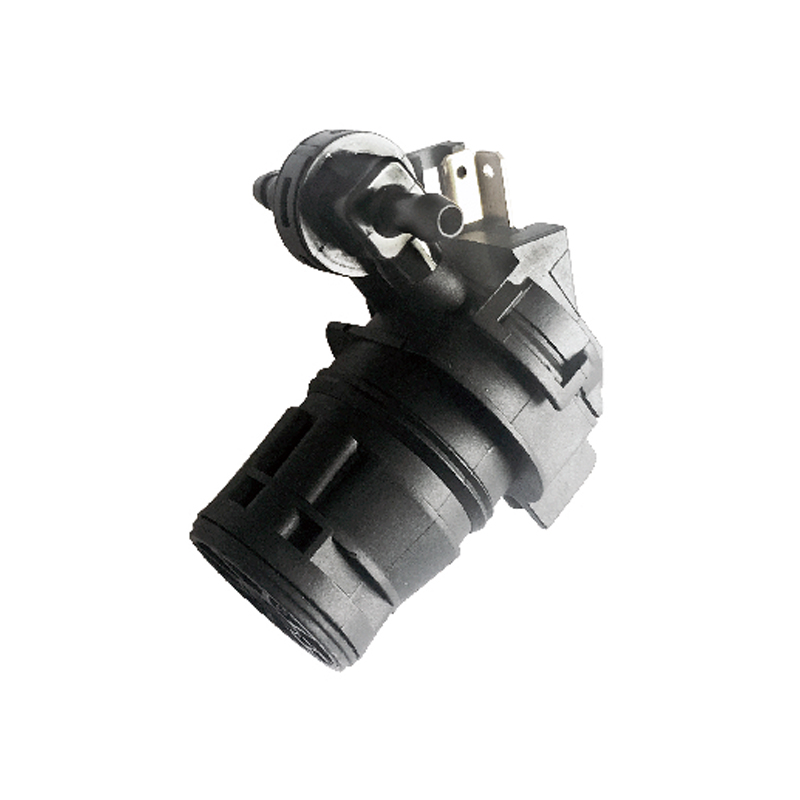

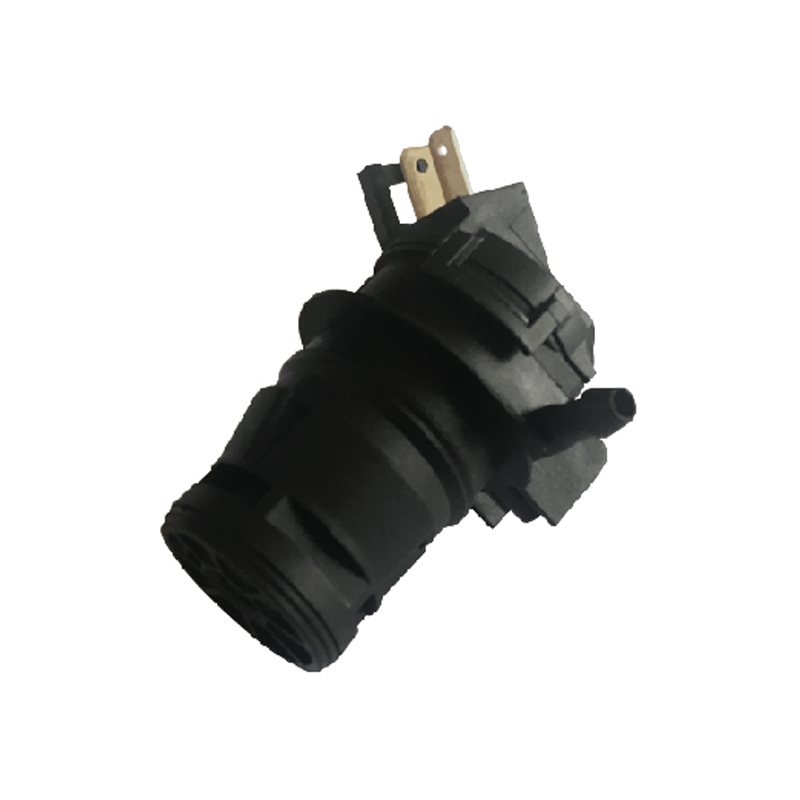

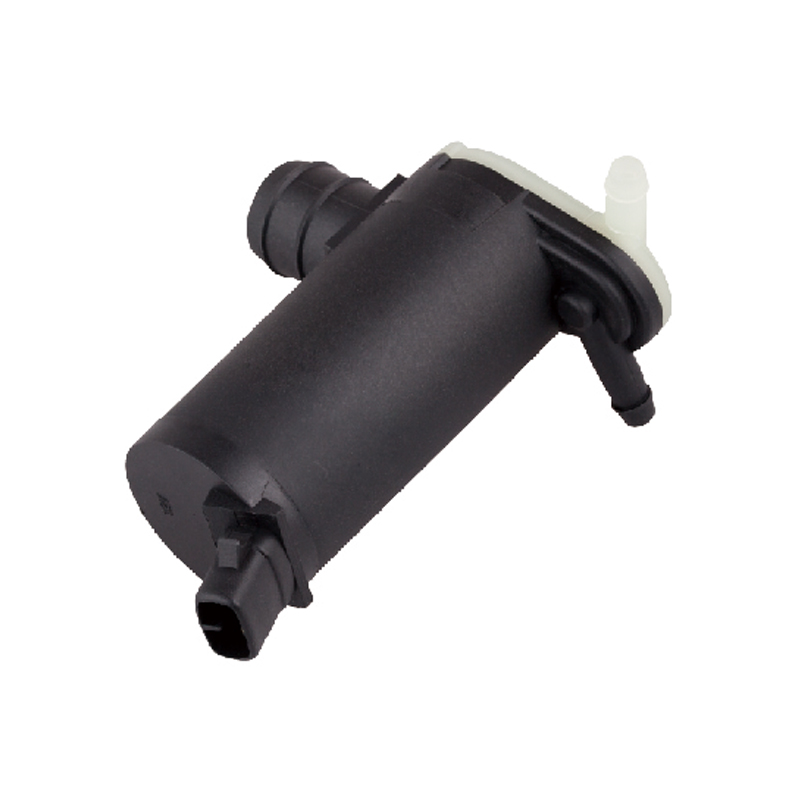

WASHER PUMP SERIES
The main function of the Automobile washer pump is to clean the windshield of the car, Can also be used as a car headlights washer pump. We have two voltage of Washer pumps, 12v Washer Pump and 24v Washer Pump, for your choice. It consists of a pump body, a micro DC motor, an impeller, a shaft seal and other components. The structure of the Car Windshield washer pump usually includes a centrifugal pump and a gear pump. When the Automobile Windshield Washer Pump working, the micro motor in the Windshield Washer Pump drives the impeller to rotate, and through centrifugal force or the squeezing force of the gear, the cleaning liquid in the liquid storage tank is transported to the windshield of the car or the nozzle at the front of the headlight through the hose, and the nozzle is at a certain angle. Spray the cleaning fluid on the windshield and headlights, and then work with the wipers to achieve the purpose of cleaning the windshield and the headlights of the car.
Features:
1. Strong versatility, the voltage has two specifications of 12V and 24V, and has the function of one-way and front and rear two-way water spraying, which can be applied to various models on the market.
2. The product is small in size, easy to carry and install.
3. It adopts fully sealed structure, reasonable design, excellent waterproof performance, stable quality, and no leakage problem in long-term use.
4. The pump body is made of high-quality environmentally friendly materials, which are fast and durable, with excellent high and low temperature resistance (-40 ~ +90 ° C), and have good oil resistance, corrosion resistance and other organic chemical substances.
5. The structure design of the pump body is advanced and reasonable, and has obtained a number of patents. It has the advantages of low working current, high pressure, large flow and long service life.
6. The product is platformized, and functional customization can be carried out according to the different requirements of customers.
Performance parameters:
Series Of Washer Pump
The washer pump is the core component of the cleaning system. It is a small assembly composed of a micro permanent magnet DC motor, pump body and impeller. It is generally installed on the liquid storage tank. The impeller is driven to rotate through the rotation of the DC motor, and the centrifugal force principle is used to spray water. The injection pressure of the pump is generally in the range of 100 ~ 250kPa, and its continuous working time is generally no more than 1min.
Performance parameters:
| Rated voltage | 12V or 24V |
| Rated power | 40～80W |
| Working pressure | 1.0～3.0bar |
| Working current | 1.0～12A |
| Flow | 0.5～2.5L/min |
| Weight | 80～150g |
