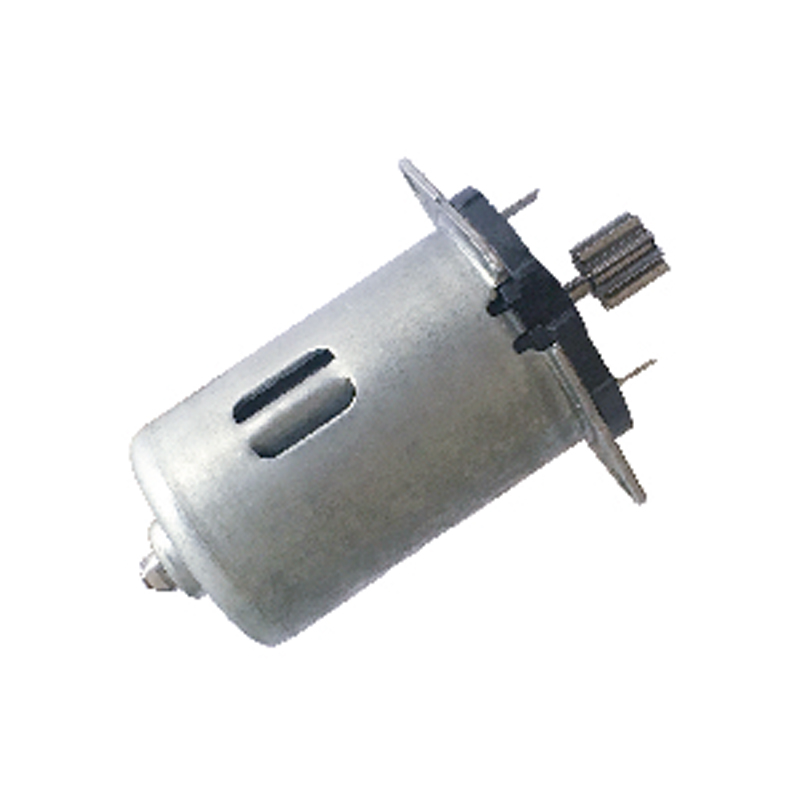

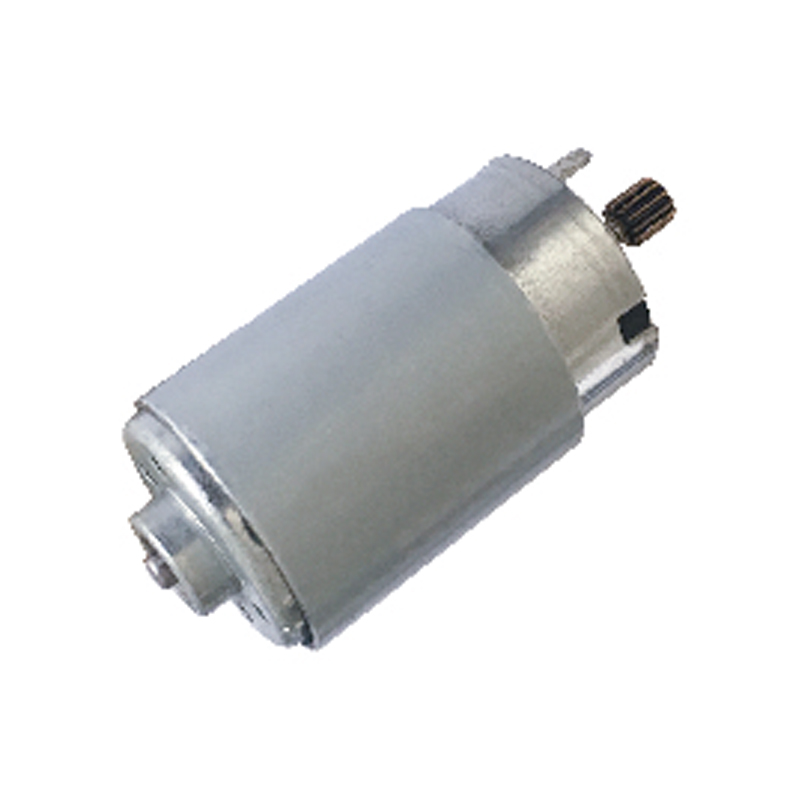

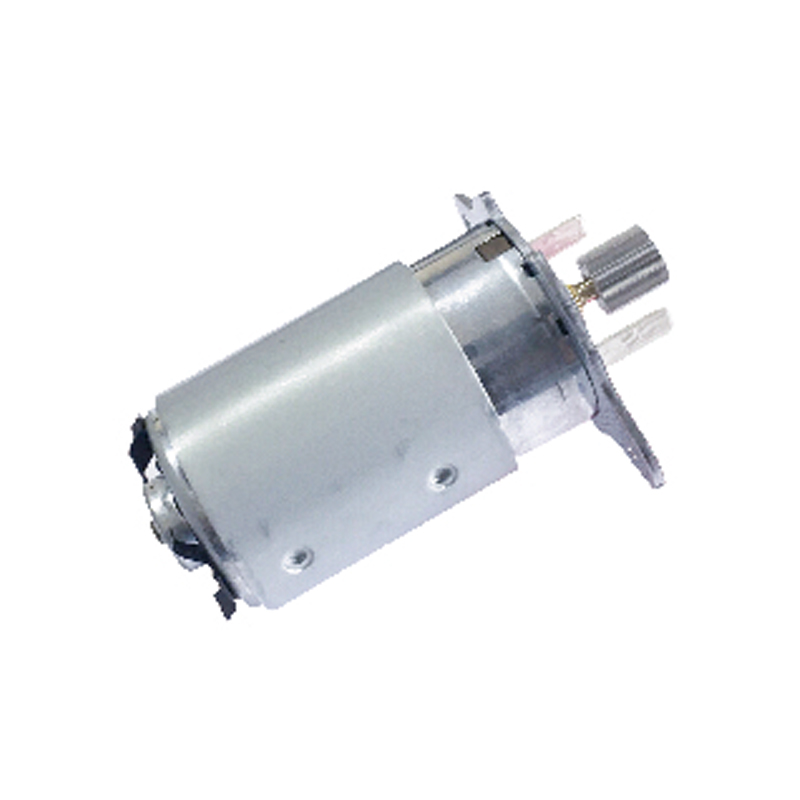

ETC MOTOR SERIES
The electronic throttle control valve motor is mainly used in automobile electronic throttle valve, which is an important control component of automobile engine. It is mainly used to control the opening degree of automobile electronic throttle valve and improve the safety, power, stability and economy of automobile driving. and reduce emissions. The main components of the throttle motor are composed of shell, end cover, rotor, magnetic tile, carbon brush and other components. Its working principle and method are to control the DC motor using pulse width modulation (PWM) technology, High Torque Etc Motor is characterized by high frequency, high efficiency, High power density and high reliability. The control unit controls the rotation angle of the DC motor by adjusting the duty ratio of the pulse width modulation signal, and the direction of the motor is controlled by the return spring connected to the throttle valve. The ETC Motor output torque is proportional to the duty cycle of the PWM signal. When the duty ratio is constant and the motor output torque is in balance with the return spring resistance torque, the throttle opening remains unchanged; when the duty cycle increases, the motor driving torque overcomes the return spring resistance torque, and the throttle opening increases On the contrary, when the duty ratio decreases, the motor output torque and the throttle opening also decrease.
Features:
Features:
1. Different from the ordinary throttle motor, the electronic throttle motor can precisely control the opening of the throttle valve to achieve the best torque output in the whole range of the engine.
2. Improve the emission performance of the engine. The electronic throttle valve motor enables the ETC system to accurately control the air-fuel ratio under various conditions, making the combustion more complete and reducing the generation of exhaust gas; in the idle state, the throttle valve is kept at a very small opening angle to stabilize combustion, Fuel economy is improved and emissions are further controlled.
3. The shell is made of high-quality electrolytic plate material, which has the advantages of good atmospheric corrosion resistance, low cost, no paint pollution, relatively environmental protection, high hardness and not easy to deform.
4. The motor parts are made of high-quality environmentally friendly materials and comply with ROHS standards. The internal copper wire is made of high temperature resistant wire, which has excellent high temperature resistance, can meet various harsh environments, and is not easy to ablate.
5. Using high-performance magnetic tile, the motor has large working torque, low current, low calorific value and long service life.
6. It is widely used in automotive power control systems such as driving anti-skid control, cruise control and vehicle stability control.
Performance parameters:
Series Of Etc Motor
Electronic throttle (electronic throttle) is an important control component of automobile engine. Automobile ETC Motor is composed of engine, speed sensor, throttle valve, etc., and adopts electronic throttle valve control system, which can accurately control the throttle valve opening.
Performance parameters:
| Voltage range | 6～24V |
| Rated power | 0.06～9.6W |
| Rated speed | 3000～10000rpm |
| Rated current | 0.1～0.4A (no load) |
| Rated torque | 15～20 m-Nm |
